HEMAKS TEXTILE MACHINERY
HMX 106 / HMX 206 SERVO
Cone-to-Hank Reeling Machine
A machine that converts yarn from cones into neat, cross-wound hanks. Ideal for dyehouses, hand-knitting yarns and export packaging; length metering is set independently for each side. For our used 2020 model machine, please see our used-machine listing .
Machine Video
Technical Specifications

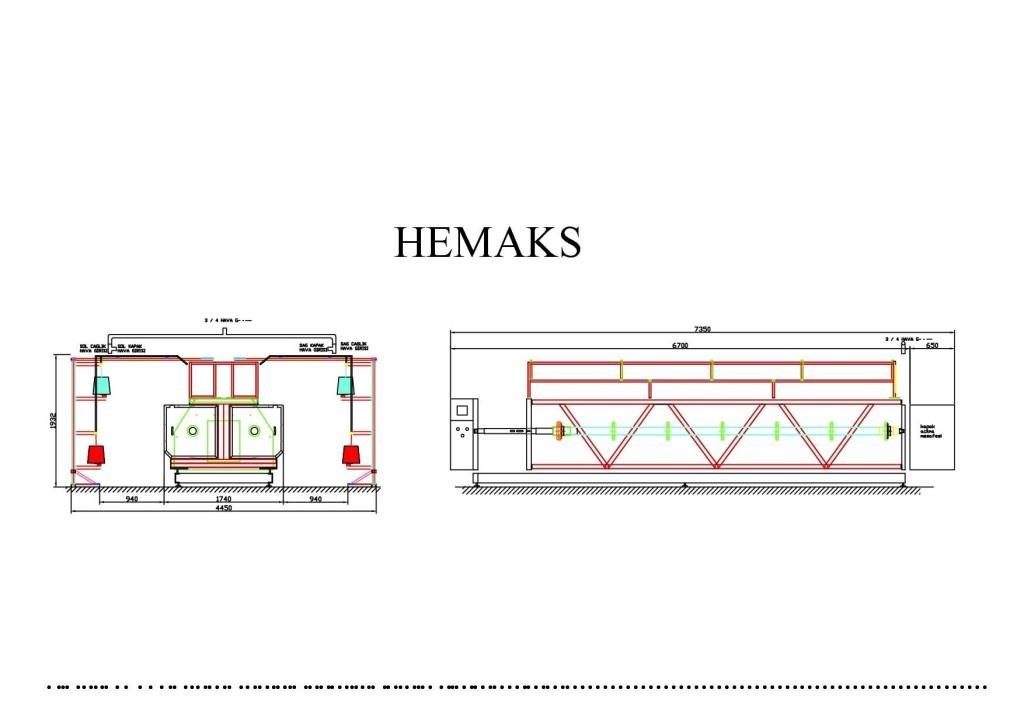

HMX 106
| Dimensions (L × W × H) | 6,800 × 4,500 × 2,200 mm |
|---|---|
| Top speed | 500 rpm |
| Hank circumference | 1,500 – 2,300 mm |
| Hank width | 100 – 500 mm |
| Number of positions | 24 × 2 = 48 positions |
| Yarn count range | 40 – 20,000 denier |
| Creel | Pneumatic creel |

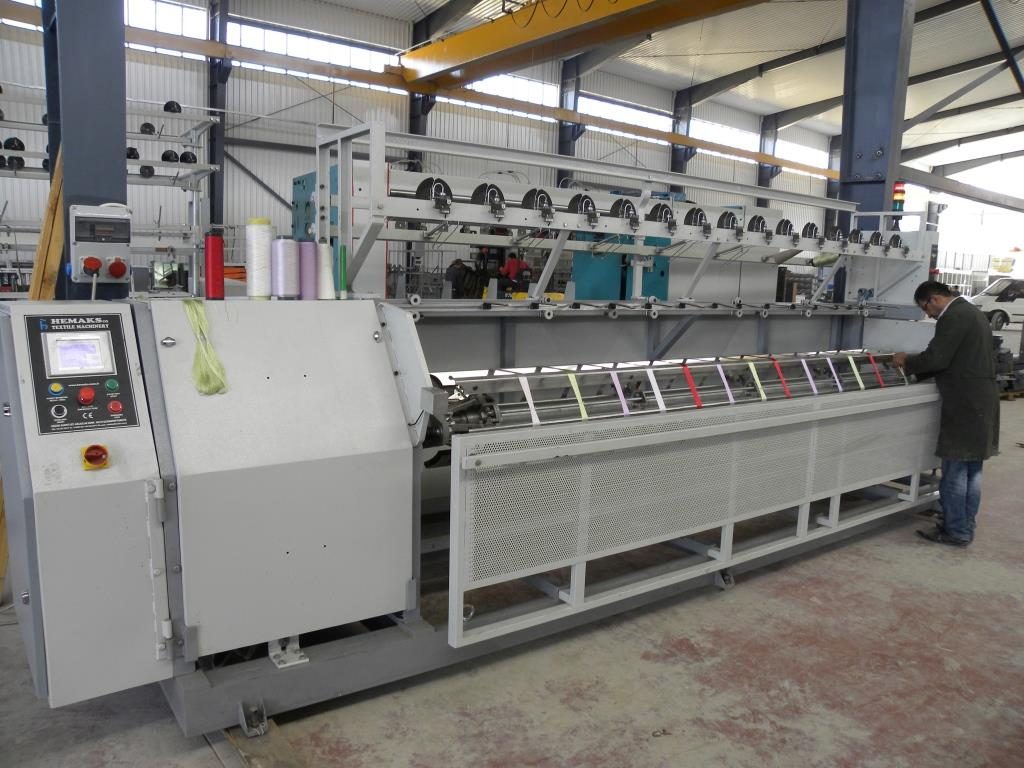

HMX 206 Servo
| Dimensions (L × W × H) | 5,280 × 1,000 × 1,800 mm |
|---|---|
| Top speed | 600 rpm |
| Hank circumference | 1,250 – 2,300 mm |
| Hank width | 100 – 500 mm |
| Number of positions | 10 – 30 (depending on hank width) |
| Yarn count range | 20 – 20,000 denier |
| Creel | Pneumatic or top-fed elastomer |
Key Features
- Independent length setting for each side
- Yarn break sensor
- Neat hanks with cross winding
- Precise speed control on the servo model
- Can process elastomeric yarns (HMX 206)
- Robust, long-lasting frame
Applications
Reeling yarns into hanks for dyeing, hand-knitting yarns and hank-form export packaging.
Denier · Nm · Ne ConverterConvert your yarn count to other systems in seconds.
Go to CalculatorYarn Guide
Get a quote for this machine
Contact us for technical details and pricing. All machines are manufactured by HEMAKS.
