HEMAKS TEXTILE MACHINERY
HMX 132 · WITH ELASTANE DEVICE

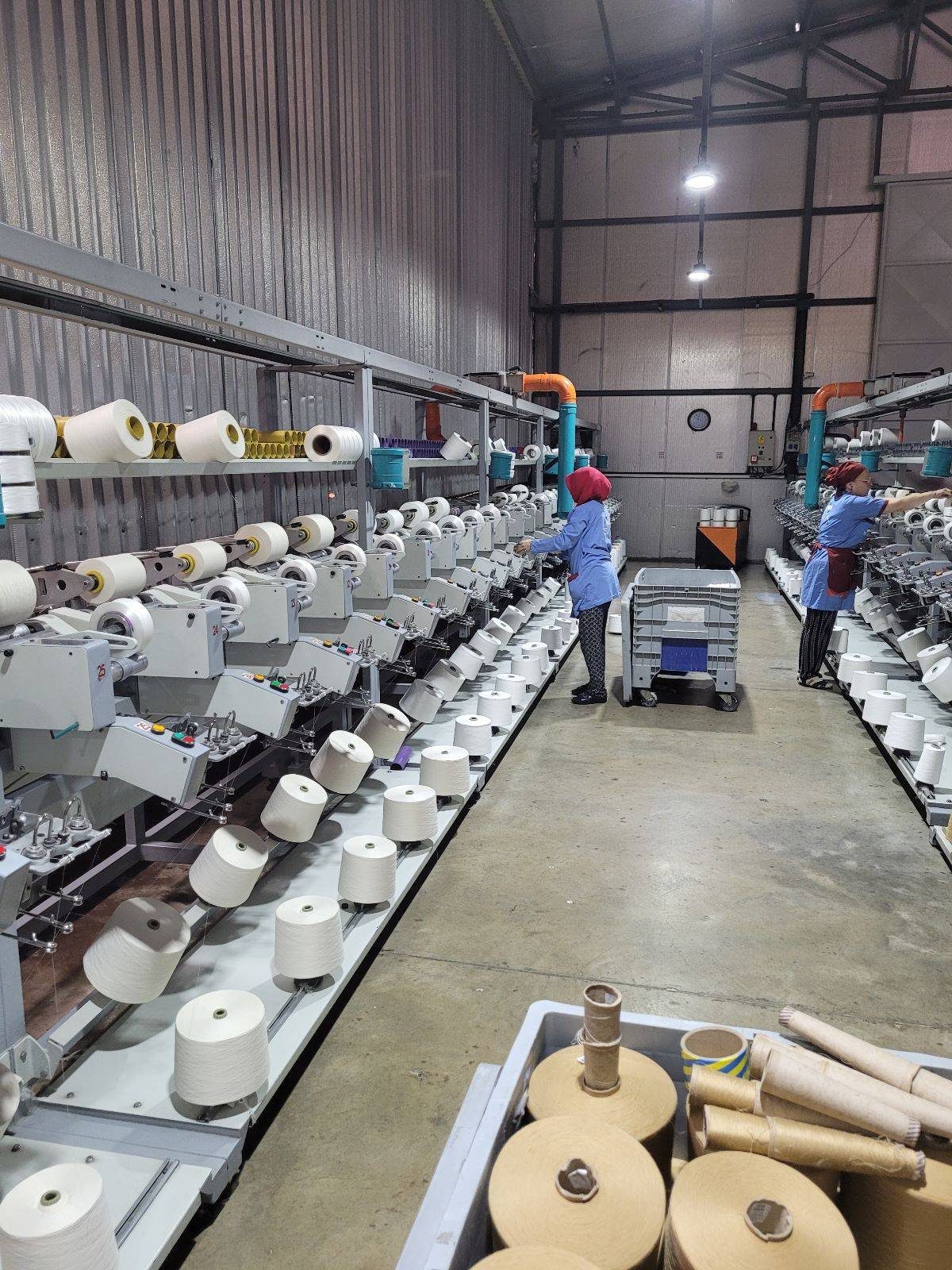

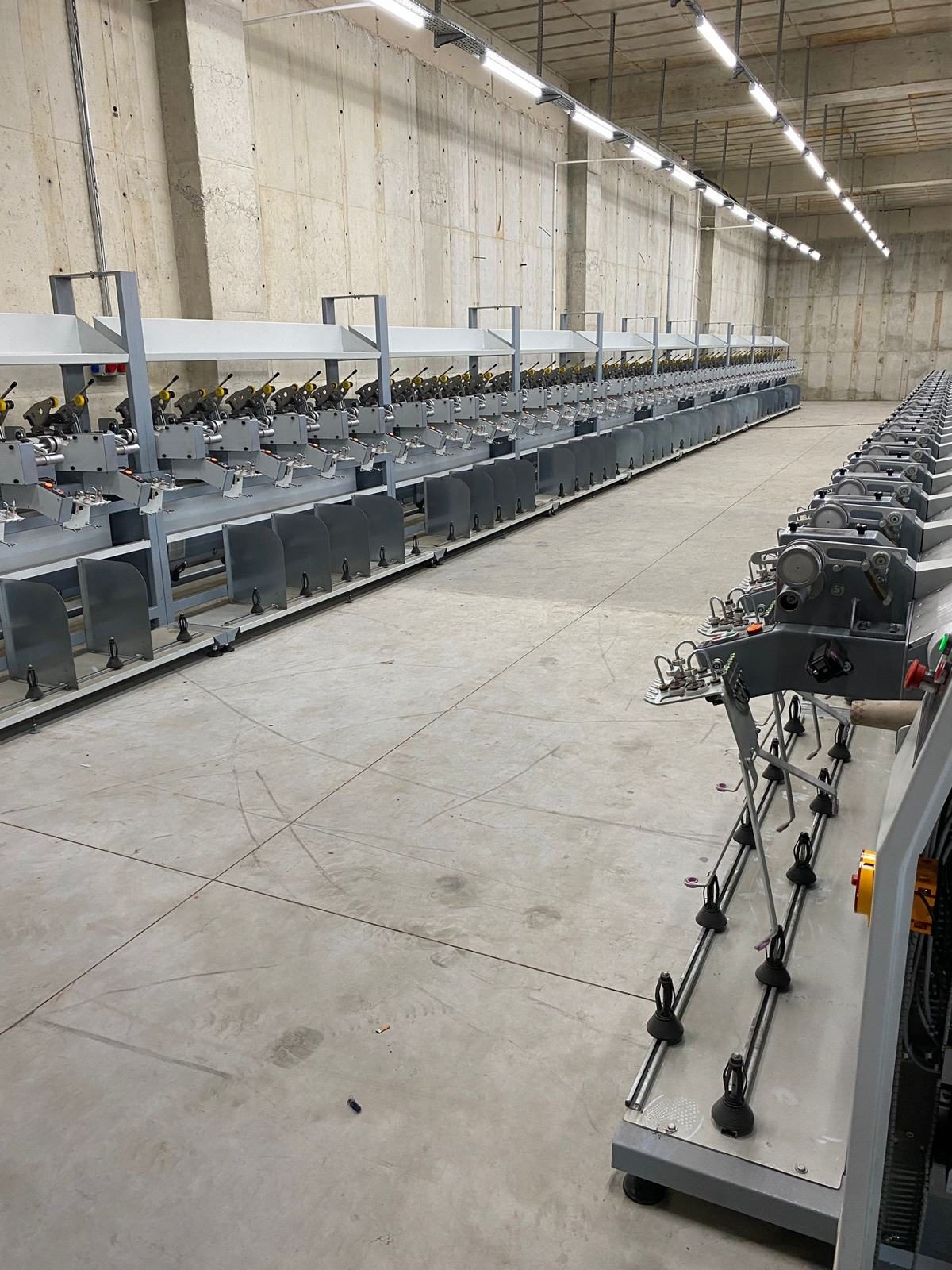

Elastane Assembly Winding Machine
Servo-controlled assembly winding machine that feeds the main yarn and elastane (Lycra®) simultaneously to produce elastic plied yarn. Ideal for socks, narrow fabrics, knitting and technical applications.
Machine Video
Technical Specifications
| Configuration | Standard 2 plies + 1 elastane · optional 3 plies + 1 elastane |
|---|---|
| Max. mechanical speed | 750 m/min |
| Package dimensions | 6″, 7″, 8″, 10″ conical and cylindrical |
| Number of positions | In 5-position sections, as required |
| Control | PLC + touchscreen, servo drive |
| Yarns processed | Filament, cotton and elastane yarns |
Key Features
- Simultaneous feeding of main yarn and elastane
- Adjustable elastane pre-draft ratio
- Independent tension control for each head
- Digital counter with automatic length stop
- Yarn break sensor and cutter per position
- Easy elastane tube change and maintenance
Applications
Socks, narrow fabrics, knitted fabrics and technical textiles requiring elastane plied yarn.
Denier · Nm · Ne ConverterConvert your yarn count to other systems in seconds.
Go to CalculatorYarn Guide
Get a quote for this machine
Contact us for technical details and pricing. All machines are manufactured by HEMAKS.
